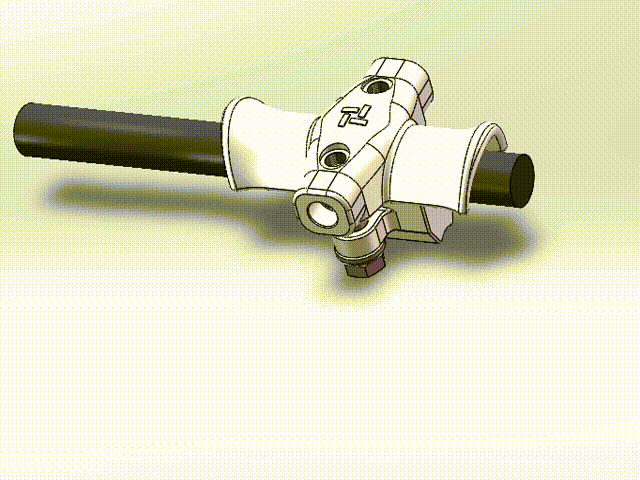

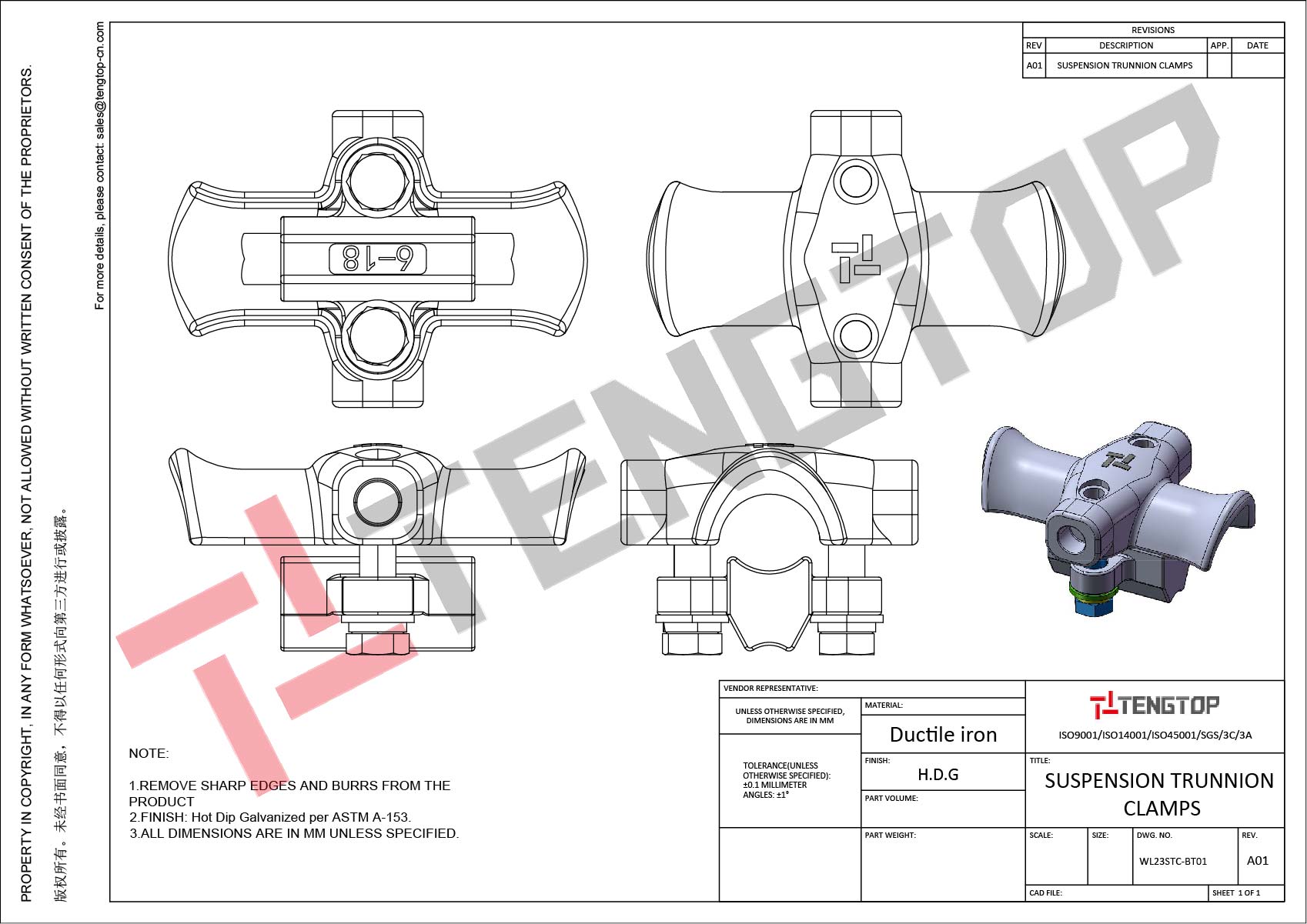

    PRODUCT NO.
    WL23STC-BT01
    Get The Latest Quotes
    Application:

    Large range-taking design with reversible keeper;For use with standard clamp top insulator trunions
    At suspension locations where stresses at the connection point, or at line angle deviations, do not allow for installation of plastic ties, a rigid top clamp can be installed to secure the conductor.

    Features:

    Additional information

    Material:

    Body & Keeper are Ductile iron
    Hardwares are Steel
    Finish:

    All parts are hot dip galvanized per ASTM A-153
    Diameter Range:

    0.25''-1.26''
    Packing:

    Carton&Plywood Pallet/Crate
