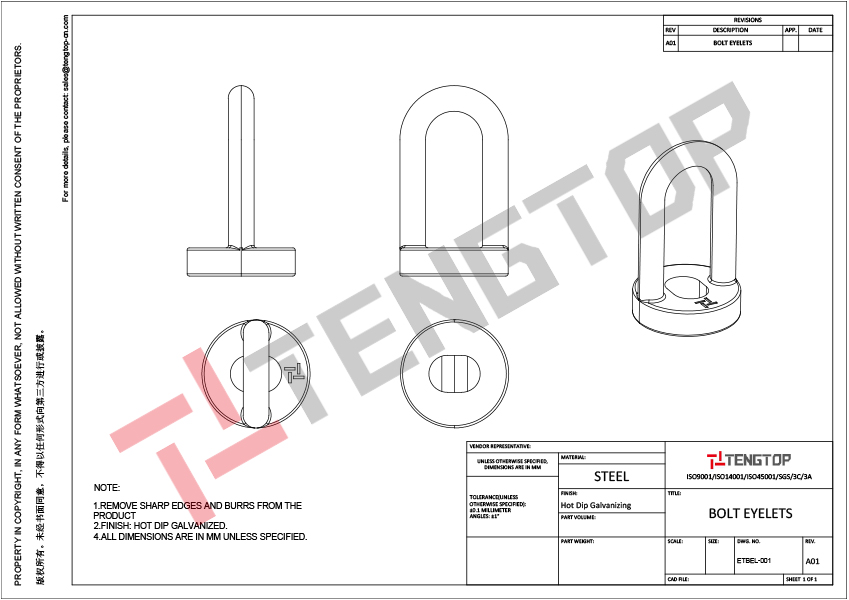

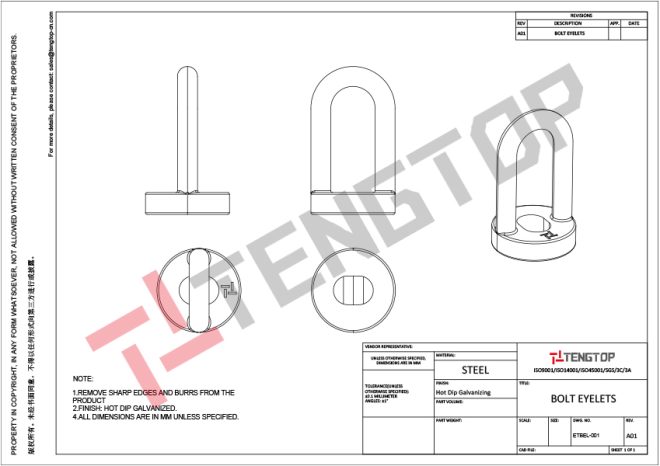

    BOLT EYELETS
    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    PRODUCT NO.
    ETBEL-001
    Get The Latest Quotes
    Application:

    For deadening with suspension or strain insulators.

    The slotted hole of the Bolt Eyelets enables the bolt to be inserted from the eye side.

    Features:

    Additional information

    Material:

    Ductile iron, grade 654512.
    Finish:

    Hot Dip Galvanized per ASTM A-153.
    Bolt Diameter:

    3/4”
    Slot Size:

    13/16 x 1-1/8“
    Packing:

    Carton&Plywood Pallet/Crate
    OVAL EYE NUT
    OVAL EYE NUT
    &nbsp

    Eyenuts are tapped to fit hot dip galvanized bolts made to ANSI specifications
    Designed to develop strength ratings consistent with the bolts with which they are used – i.e. 1/2" = 85000 lbs, 5/8" = 13,550 lbs, 3/4" =20,050 lbs
    Material:

    Steel/Ductile iron grade 654512.
    Finish:

    All parts, except cotter pins, hot-dip galvanized per ASTM A-153.
    Packing:

    Carton&Plywood Pallet/Crate
    CABLE VIBRATION DAMPER
    CABLE VIBRATION DAMPER
    Clamp Material:

    Aluminium Alloy
    Hammer Head Material:

    Grey Cast Iron,Painted
    Weight(kg):

    2.2-12.9
    Span:

    100m,150m,200m,300m,400m
    Packing:

    Carton & Plywood Pallet/Crate
    ANCHOR SHACKLE
    ANCHOR SHACKLE
    Material:

    Forged steel.
    Clevis pins and clevis bolts are high strength steel.
    Cotter pins are stainless steel.
    Finish:

    All parts, except cotter pins, hot dip galvanized per ASTM A-153.
    Ultimate Strength:

    25000 lbs
    Packing:

    Carton&Plywood Pallet/Crate
