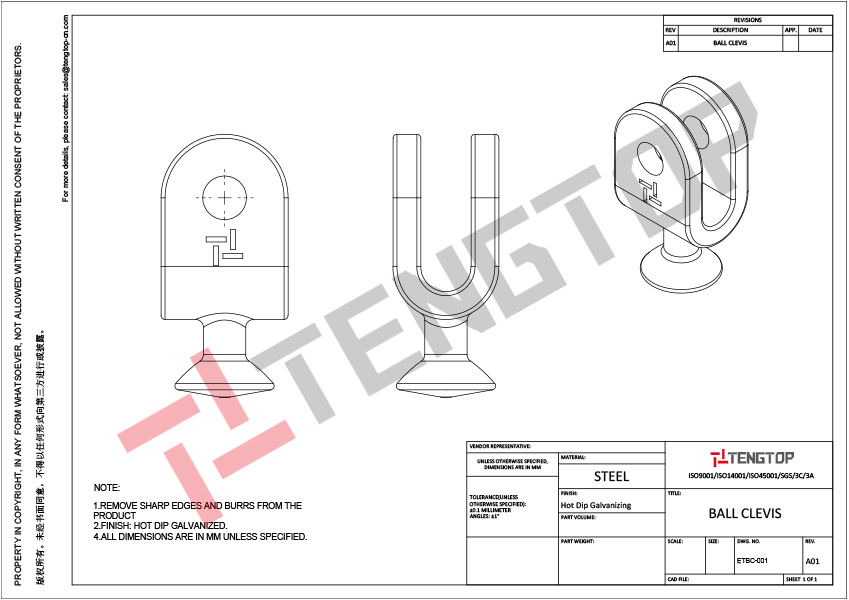

    BALL CLEVIS
    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    PRODUCT NO.
    ETBC-001
    Get The Latest Quotes
    Application:

    For attaching ball and socket insulators to other associated tower hardware.

    Features:

    Additional information

    Material:

    Forged steel.
    Clevis pins, bent clevis bolts and nuts are steel.
    Cotter pins are stainless steel.
    Finish:

    All parts, except cotter pins, hot dip galvanized per ASTM A-153.
    ANSI Class: 52-3 & 5
    Ultimate Strength:

    30000lbs
    Packing:

    Carton&Plywood Pallet/Crate
    INSULATOR END FITTING
    INSULATOR END FITTING
    Material:

    Steel
    Finish:

    Hot Dip Galvanized per ASTM A-153
    Packing:

    Carton & Plywood Pallet & Crate.
    QUADRANT STRAIN CLAMPS
    QUADRANT STRAIN CLAMPS
    Material:

    Clamp body and keeper are ductile iron, grade 654512.
    Clevis pins, u-bolts, nuts and washers are steel.
    Socket and clevis fittings are ductile iron, grade 654512.
    Cotter pins are stainless steel.
    Finish:

    All parts, except cotter pins, hot dip galvanized per ASTM A-153.
    Ultimate Strength:

    20000 lbs
    Packing:

    Carton&Plywood Pallet&Crate
    THIMBLE EYE NUT-TRIPLE EYE
    THIMBLE EYE NUT-TRIPLE EYE
    Bolt Diameter:

    1“
    Strength Ratings:

    36000 lbs
    Material:

    Steel
    Finish:

    Hot Dip Galvanized per ASTM A-153
    Packing:

    Carton&Plywood Pallet/Crate
