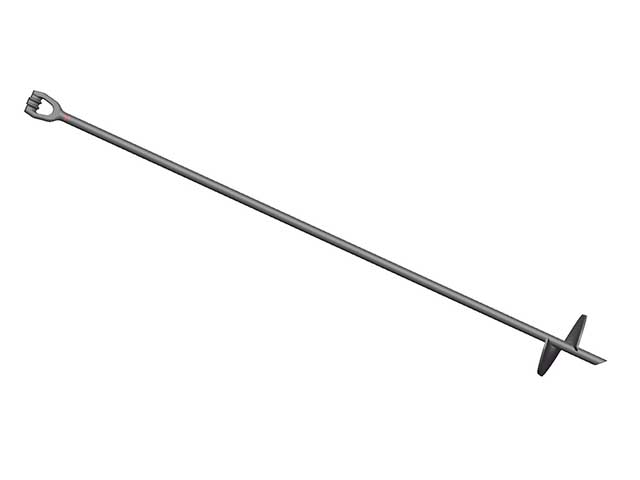

ANCHRO ROD FOR HELICAL ANCHORS
3D
2D
PRODUCT NO.
ET25ARHA-BT01-01
200 in stock
Application:
Used in conjunction with internally tapped earth anchorsand couplings or eye nuts. Anchor Rods are forged from AISI 1045 Steel to ensure high tensile strength. Hot dip galvanized to meet ASTMS pecification A123.
SPECIFICATION
| Part # | MacLean | Hubbell | Size | Length | TensileStrength |
| TT3420 | D6231/2 | 12336P | 5/8″ | 3.5′ | 16,000# |
| TT3421 | D7531/2 | 12634P | 3/4″ | 3.5′ | 23,000# |
| TT3422 | D10031/2 | 12338P | 1″ | 3.5′ | 36,000# |
| TT3423 | D62 | 12332P | 5/8″ | 7′ | 16,000# |
| TT3424 | D75 | 12632P | 3/4″ | 7′ | 23,000# |
| TT3425 | D100 | 12334P | 1″ | 7′ | 36,000# |
Features:
Additional information
| Material: | STEEL |
|---|---|
| Finish: | Hot Dip Galvanized per ASTM A-153 |
| Packing: | Steel Pallet |
